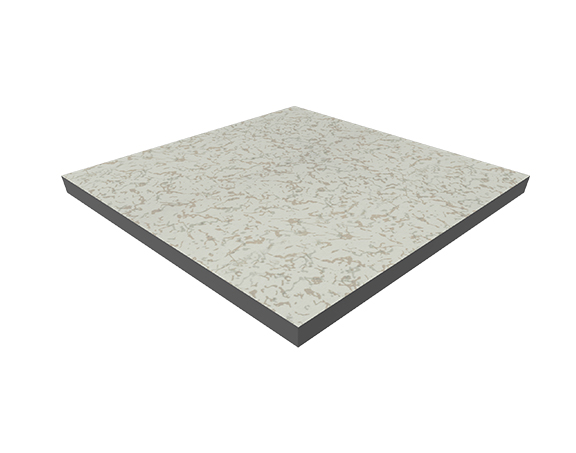

The core of the Tusk Calcium Sulphate access flooring system is made of fiber-reinforced Calcium Sulphate. As reinforcing materials, non-combustible high-grade alpha-hemihydrate single-pressed gypsum and non-toxic unbleached cellulose fibers are employed. The base and top surfaces of the core are factory bonded using a suitable mix of surface finishes such as aluminum, galvanised sheet steel, high-pressure laminate, and so on. A PVC edge band protects the panel's edges. The system has a strong acoustical sound-deadening value.
Panel dimension: 600 x 600 mm.
Thickness: 30 mm | 34mm
Top:Galvanized Iron Sheet / Anti
Static High Pressure Laminate Static Dissipative / Conductive
Vinyl
Bottom:Galvanized Iron Shee
Core:Natural gypsum of high
density over 1600 kgs/m3
High precision manufacture gives good acoustic values.
90-97% recyclable panels
Environment friendly system.
Electrostatic charges dispersed by intrinsic design elements, independent of panel material.
The excellent walking properties provide high level comfort and ideal working atmosphere.
Precision in floor levels and positive alignment with the understructure.
| System Selection Guide | ||||||
|---|---|---|---|---|---|---|
| Structural Performance as per BSEN 12825 | 34 mm | |||||
| Concentrated Load | 625 kgs (6.12kN) | |||||
| Ultimate Concentrated Load | 907 kgs (2000kN) | |||||
| Uniformly Distributed Load(As per PSA MOB PF 2 PS/CISCA) | 1875 kgs/sq m | |||||
| Stringer Load | 102 kgs (225lbf) | |||||
| Pedestal Axial Load Test | 22 kN | |||||
| Pedestal Over Turning Moment Test | 113 N m | |||||
| *Contact us for detailed specification of the product design. | ||||||
